Video Parking Guidance System

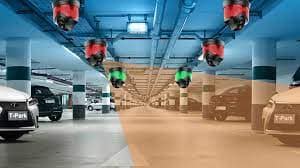

IPark’s Video Parking Guidance System (VPGS) employs a camera sensor to accurately assess occupancy status and an LED light to indicate the availability of each parking space, boasting an impressive accuracy rate of 99%. The camera sensor’s LED light can be easily customized to display any color within the RGB chart, allowing for differentiation of parking stalls such as vacant, occupied, handicap, and reserved.
The system is easily scalable for expansions and customizable to add different features and configurations. The VPGS integrates seamlessly with the parking access and revenue control system (PARCS) for a better visitor experience.
The system combines 3 features in 1:
1. Parking guidance system: The VPGS guides drivers through the parking facility to find the nearest open parking space.
- CCTV: The video sensors acts as a closed-circuit security system for real-time monitoring of the parking garage or to play recorded videos for security purposes. The 24/7 monitoring creates a safer experience for parkers.
- Vehicle locator: The ‘Find your car!’ kiosks help drivers locate their vehicle inside the parking garage. Parkers can search for their car by inputting their partial or full license plate credentials, time of arrival or parking number.
We also offers a variety of cameras to monitor up to 6 spaces:
System Features
- 3 systems in 1
- Full HD resolution
- A camera can monitor 1, 2, 3 or up to 6 parking spaces
- Low maintenance
- Numerous LED light color options
- High luminosity LED indicator
Applications
- Universities
- Airports
- Shopping Centers
- Sports and events arenas
- Governmental facilities
System components:
Parking Guidance System
Each parking space is installed with iPark one or two-piece ‘ultrasonic sensor’ to monitor parking status. These sensors connect to the LED displays which are strategically placed inside the garage to guide drivers to the closest open parking space.
The system helps visitors to cut their search time in half while improving traffic flow for a better parking experience.
- Ultrasonic Detector and LED Indicator
Two-piece PGS is composed by an ultrasonic detector and a high luminosity LED indicator. Each sensor monitors a parking space and controls the LED indicator to change color (red, green or blue) based upon status.
- Forward Mount Ultrasonic Sensor
This innovative sensor has a built-in LED indicator to display vacancy and occupancy. Compared with a traditional two-piece sensor and LED indicator light, sensor reduces installation material and labor costs. The LED light can be individually selected at any time to change to any color within the RGB chart. This is typically used to differentiate the type of parking stalls such as: vacant, occupied, handicap, reserved.
System Features
- Real time management
- High accuracy rate
- Easy to install
- Low maintenance
- Numerous LED light color options
- High luminosity LED indicator
Applications
- Universities
- Airports
- Shopping Centers
- Sports and events arenas
- Governmental facilities
CAMERA
PARKING GUIDENCE SYSTEM
INTRODUCTION
IPark Camera Parking Guidance System is an innovative and comprehensive solution for modern car parks, providing outstanding features such as “Parking Guidance,” “Find Your Car,” and “Surveillance.”
Each camera detector in the IPark system offers real-time security by monitoring license plates and occupancy for up to 6 parking spaces. With advanced front-end recognition technology, the IPark camera detector can operate independently and accurately determine the status of each parking space. Drivers can easily access parking information through lighted indicators and information signage, and they can conveniently track the location of their parked vehicle using nearby “Find Your Car” query kiosks. The IPark system ensures a seamless parking experience for drivers while enhancing security and efficiency in the car park.
WORKING PROCESS
- Check parking space’s status via collecting and analyzing the photos data.
- Different color of the LED indicator will show different status of the parking space, Red-Occupied; Green-Available
PARKING SPACE
STATUS
Server collect and analyze all space’s status information, then release it to entrance led display and VMS (Variable Message Sign). Driver can find the available parking space efficiently according to the guidance in VMS
HOW TO
FIND YOUR CAR FAST IN A BIG CAR PARK?
The Query Kiosk is installed with “Find Your Car System”. By inputting license plate number, parking entrance time or parking space number, car owners can find the car easily and it will show the best route to your car. Meanwhile cars without license plate can also be monitored.
FIND YOUR CAR
QUERY KIOSK
BENEFITS
OF INDOOR CAMERA PGS
Innovative wireless communication technology allows convenient system configuration and cost effective installation
Powerful detection capacity: one camera sensor monitors maximum 6 spaces
Integrated "Find Your Car" system solves problems of finding a parked car
Camera sensor at each space ensures high security inside car park
Statistic reports increase value and performance of car park.
SYSTEM INTEGRATION
With deep insight of park management industry, intelligently IPark employs LPR (License Plate Recognition) technology to its camera parking guidance system, integrated car park access control system, payment system, find your car system, cloud-based data platform. Car park can from now on realises entirely digital management. Driver can enjoy a really non-stop parking service, owners get no more headache from traffic, complaint, management labor can be laregely released.
ULTRASONIC
PARKING GUIDENCE SYSTEM
INTRODUCTION
Ultrasonic parking guidance system provides visual indication to driver while searching for a vacant parking spaces: ultrasonic sensor at each space monitors real-time occupancy and reports by changing color of individual lighted space indicator. A green light signifies that the space is vacant while a red light indicates that the space is filled or already occupied. At the meantime, availability information will be accordingly updated on decision point signs. No more guess work for the driver as to which parking level has available spaces for parking.
WORKING PROCESS
Data Acquisition
Ultrasonic sensor at each space forms system foundation. It detects parking status and reports to system controller on R485 Bus.
Data Process and Transmission
System controller processes data acquired from ultrasonic sensor, update real time information to associated signage, reports to upper layer on CAN Bus.
Data Analysis
Host Management software analyses data and generates statistics reports. Browser based architecture allows remote access to system.
TECHNICAL SPECIFICATIONS
| Power Supply | DC18V-24V |
| Power Consumption | ≤0.5W |
| Detection Mode | Ultrasonic wave |
| Distance | 0.3m-4.5m |
| Scope of Detection | ±15 |
| Distance Setting | Automatic |
| Working Environment | Temperature: -10°C ∼ +80°C; Humidity: ≤ 90% |
| Baud Rate | 9600 bps |
| Address Coding | DIP Setting |
| Size | 105 x 105 x 61(mm) |
| Weight | 0.3 kg |
BS FRAME SYSTEM STRUCTURE DIAGRAM
BENEFITS
OF INDOOR ULTRASONIC PGS
An ultrasonic parking guidance system reduces 'time to find a space" by 44%, shown on an independent study by Arup (Australia) for Westfield Parramatta.
Noticeably reduces congestion in the car park, allowing for faster exiting speed (by around 10%)
Creates 100% usage of the car park by making every space "visible" to the drivers with decision point signage.
Less labor is required to manage the parking.
MORE ULTRASONIC SENSOR FOR YOUR CHOICE
INTEGRATED SENSOR
GEOMAGNETIC
PARKING QUIDANCE SYSTEM
INTRODUCTION
Geomagnetic Sensor
PMD-15E
OUTDOOR
WIRELESS GEOMAGNETIC SENSOR
Detects vehicles by analyzing the change of geomagnetic field; Information detected by detector (presence, flow, speed, etc.) will be transmitted wireless to the controllers installed at roadside.
TECHNICAL SPECIFICATIONS
| Radio Frequency | RF470MHz∼RF500MHz |
| Communicate Distance | 50m |
| IP Rate | IP68 |
| Detection Rage | Within 50m radius |
| Working Temperature | 40°C ∼ 80°C |
| Load Affordable | 15 tons |
| Battery Lifetime | 5 years |
| Size | Ø60 x 120mm |
| Weight | 0.32kg(±) |
CROSS SECTION
WORKING PROCESS
The Geomagnetic detector is based on the geomagnetism sensing, wireless data transmission and low power consumption technologies, judges whether a vehicle is parked in the parking space by detecting the change of the parking space geomagnetic variation, and wirelessly transmits the detection results to the geomagnetic manager.
SYSTEM STRUCTURE DIAGRAM
BENEFITS
OF GEOMAGNETIC PGS
100% wireless in both communication and power supply
High detection accuracy (Upto 99%)
High adaptability to hash environment.
Inbuilt battery, 18AH, 5-year autonomy
7*24 uninterrupted working
Withstands over 15 tons of pressure
Compact cylinder design, easy to install
Buried underground, maintenance - free
ON STREET
PARKING TOLL COLLECTION
IPark geomagnetic solution can be deployed in street parking by interacting with parking meter, easier way to pay the parking fee.
PARKING METER
IPark Intelligent Parking
BENEFITS
OF Smart Parking System
Advancement
The advanced sensing network technology, wireless communication technology, mass data management technology, distributed database integration management technology and three-layer system network database structure are adopted. It’s durable and efficient in operation. It is at the advanced level in the industry.
Compatibility
The system supports the conversion between multiple format data, and is compatible with various kinds of end equipment. the original system operation habit is considered as far as system deployment, and the users are enabled to adapt to the new system within a short time.
Extensibility
The software & hardware’s re-development, the network system, database system and information communication hub which adopts the standard data interface are all supported to data exchange and sharing with other systems.
Accessibility
The system design sticks to high accessibility principle, providing an open structure, and meets relevant standards in order to guarantee the seamless integration between the system and other application systems. Both the software and hardware interfaces support data communication in unique standard. The communication end is of multi-interface structure meeting different requirements of governmental management and end users’.
Security
The network access interface adopts dedicated firewall system to prevent the vicious intrusion from unauthorized users. Internal employees and dispatch clients will have open authorities at different levels, and is able to operate different system to realize the self-inspection, real-time monitoring and automatic failure alarm & detection as well as self-recovery capacity of the network.
